Home > Products > Connectors, Interconnects > Rectangular Connectors - Free Hanging, Panel Mount > CHG-2040-001010-KEP

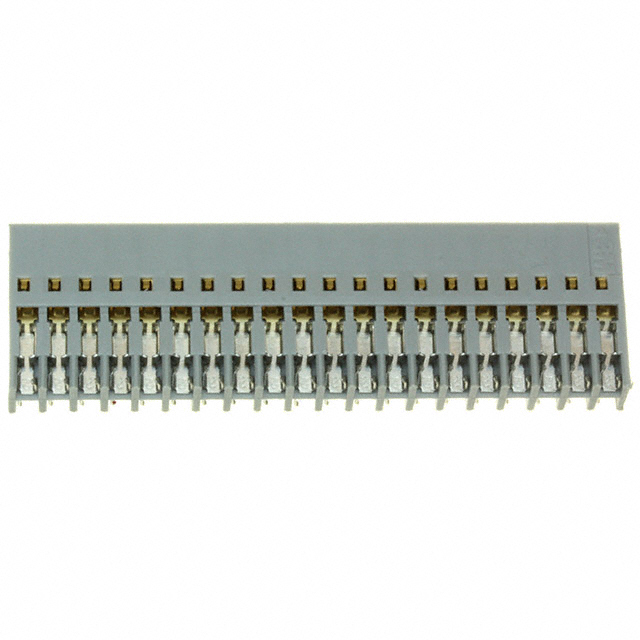

CHG-2040-001010-KEP

CHG-2040-001010-KEP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CHG-2040-001010-KEP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CHG-2040-001010-KEP
Manufacturer	3M
Description	CONN RECEPT IDC 40POS 24-22 AWG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 18707 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.497	$3.346	$3.042	$2.89
	$2.814	$2.51	$2.358	$2.084

Product parameter
Data sheet

Product parameter

Part Number	CHG-2040-001010-KEP	Manufacturer	3M
Description	CONN RECEPT IDC 40POS 24-22 AWG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18707 pcs	Data sheet	Interconnect Catalog CHG Series Specification CHG-20 Series Datasheet
Category	Connectors, Interconnects	Wire Type	Discrete or Ribbon Cable
Wire Gauge	22-24 AWG	Series	CHG
Row Spacing	0.100" (2.54mm)	Pitch	0.100" (2.54mm)
Packaging	Bulk	Other Names	00054007375241 05400737524 3M9114 5400737524 54007375241 7010293950 80610192751 CHG-2040-001010-KEP-ND CHG2040001010KEP
Number of Rows	2	Number of Positions	40
Mounting Type	Free Hanging (In-Line)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Closed End	Fastening Type	-
Detailed Description	40 Position Rectangular Receptacle Connector IDC Gold 22-24 AWG	Contact Type	Female Socket
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Connector Type	Receptacle	Color	Gray
Cable Termination	IDC
