966204-6702-AR

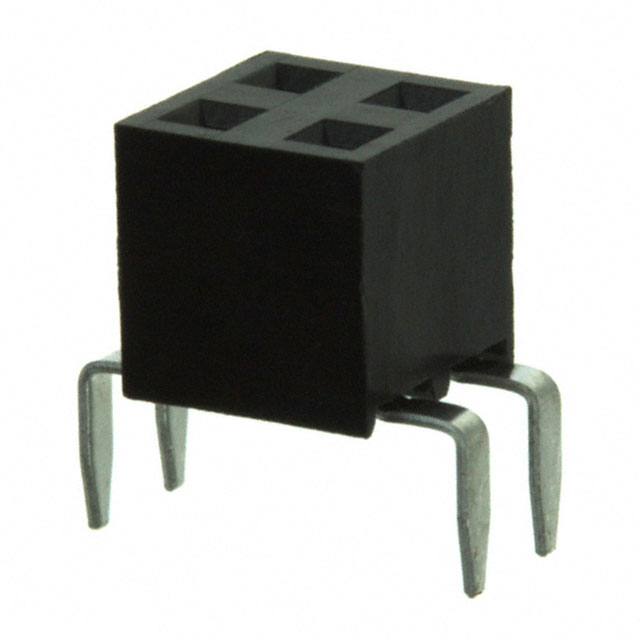

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 966204-6702-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 966204-6702-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 966204-6702-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET DL ENTRY 4POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.293 | $0.258 | $0.223 | $0.182 | $0.162 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 966204-6702-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET DL ENTRY 4POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125444 pcs | Data sheet | 9662xx-6702-AR Series |
| Category | Connectors, Interconnects | Voltage Rating | 1000VDC |
| Termination | Solder | Style | Board to Board |
| Series | 966 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 3M9549 5111105234 51111052341 9662046702AR DE500057299 |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.197" (5.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 4 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | - |
