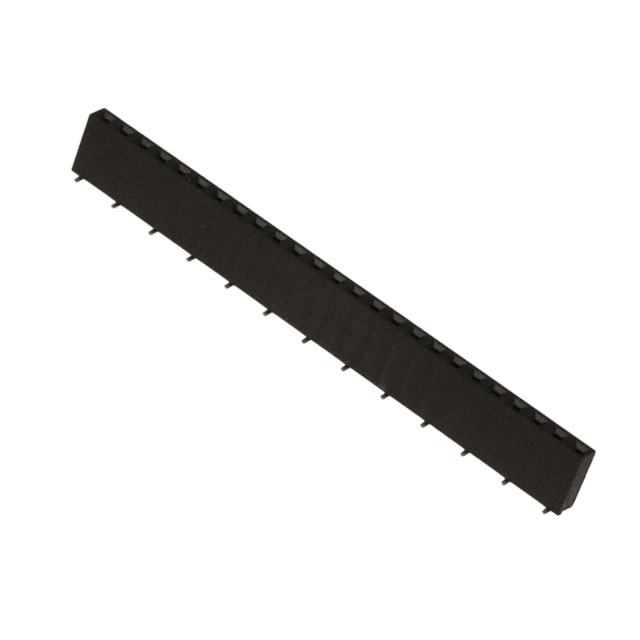

963125-2000-AR-PR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 963125-2000-AR-PR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 963125-2000-AR-PR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 963125-2000-AR-PR |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET SGL 25POS GOLD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 963125-2000-AR-PR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET SGL 25POS GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5526 pcs | Data sheet | 9631xx-2000-AR-xx Series |
| Category | Connectors, Interconnects | Voltage Rating | 1000VDC |
| Termination | Solder | Style | Board to Board |
| Series | 963 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Other Names | 3M9565TR 5111105552 51111055526 9631252000ARPR DE500058446 ZZ150354970 |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 25 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.295" (7.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 25 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | - |
