961272-6404-AR

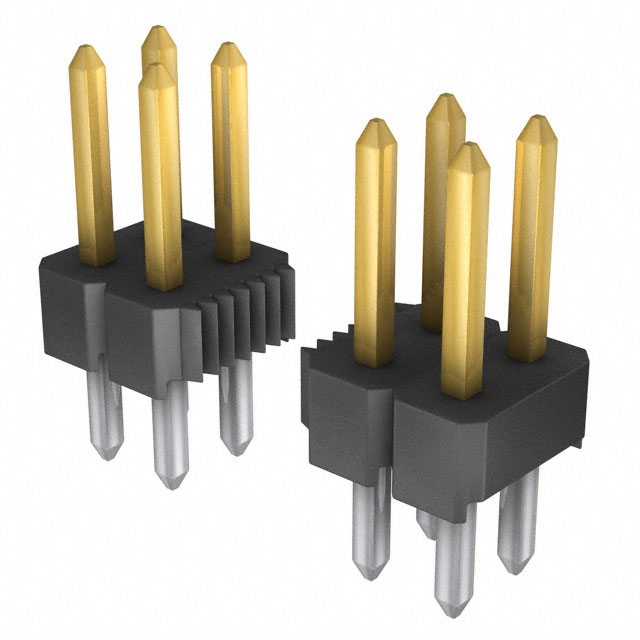

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 961272-6404-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 961272-6404-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 961272-6404-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER VERT DUAL 72POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.89 | $1.813 | $1.511 | $1.284 | $1.095 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 961272-6404-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER VERT DUAL 72POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28562 pcs | Data sheet | 961xxz-6x04-AR Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 961 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.445" (11.30mm) |
| Other Names | 3M9466 3M9466-72 3M9466-ND 4046719181919 4671918191 70-2003-0399-1 7010386553 70200303991 9612726404AR DE500042440 |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 72 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 72 position 0.100" (2.54mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | 0.217" (5.50mm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
