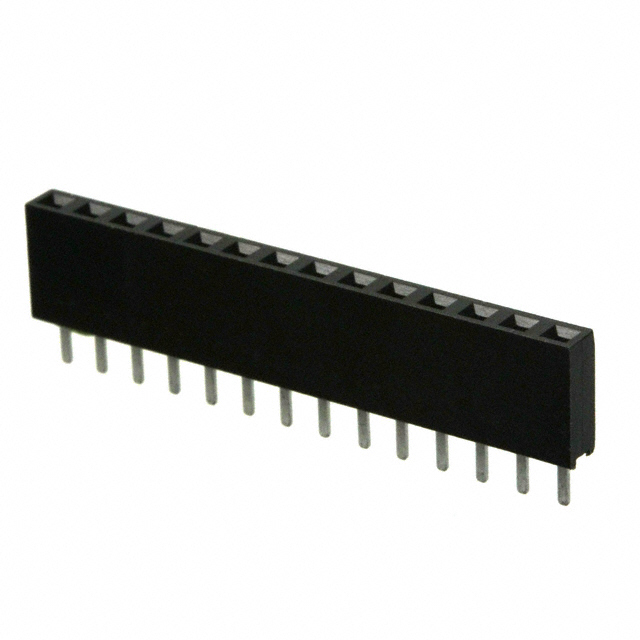

960114-6202-AR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 960114-6202-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 960114-6202-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 960114-6202-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET SGL VERT 14POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.851 | $0.774 | $0.663 | $0.553 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 960114-6202-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET SGL VERT 14POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68653 pcs | Data sheet | 960xxz-6x0x-AR Series |
| Category | Connectors, Interconnects | Voltage Rating | 1000VDC |
| Termination | Solder | Style | Board to Board |
| Series | 960 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 3M9519 4046719183500 4671918350 9601146202AR DE500056051 |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.280" (7.10mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 14 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
