957220-2000-AR-TP

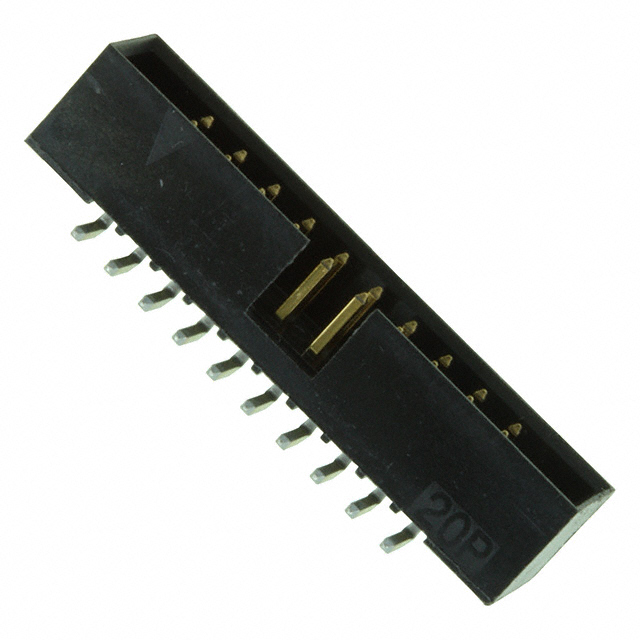

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 957220-2000-AR-TP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 957220-2000-AR-TP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 957220-2000-AR-TP |
|---|---|
| Manufacturer | 3M |
| Description | CONN HDR 20POS 2MM VERT SMD 10AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 108 pcs | ||
|---|---|---|---|---|---|
| $1.107 | $1.063 | $0.886 | |||
| 504 pcs | 1008 pcs | 5004 pcs | |||
| $0.753 | $0.642 | $0.576 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 957220-2000-AR-TP | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HDR 20POS 2MM VERT SMD 10AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61599 pcs | Data sheet | 957 SeriesInterconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | 957 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 00051119900613 3M6490 5111990061 51119900613 70-2003-0381-9 7010386545 70200303819 9572202000ARTP DE500037218 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 20 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
