953424-6602-AR

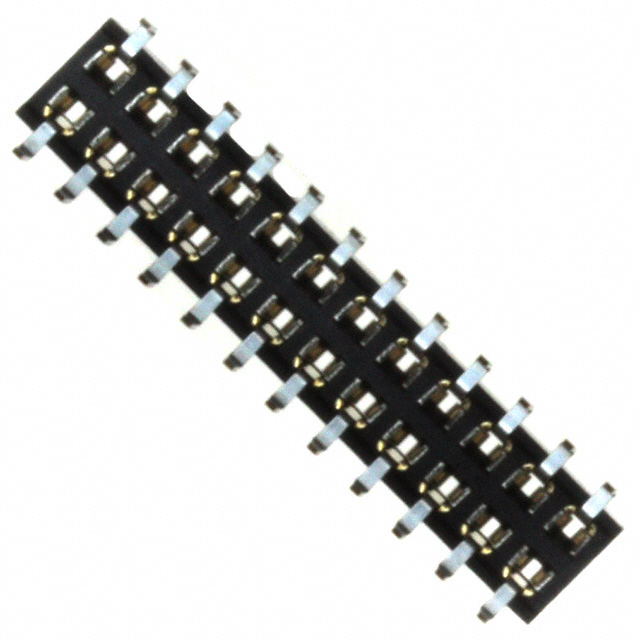

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 953424-6602-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 953424-6602-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 953424-6602-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET 24POS 2MM VERT T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 953424-6602-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET 24POS 2MM VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5710 pcs | Data sheet | 95x Series Datasheet9534xx-6602-AR Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 1000VDC |
| Termination | Solder | Style | Board to Board |
| Series | 953 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 3M9225 5111104260 51111042601 9534246602AR DE500028654 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.169" (4.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 24 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | - |
