953109-2000-AR-PR

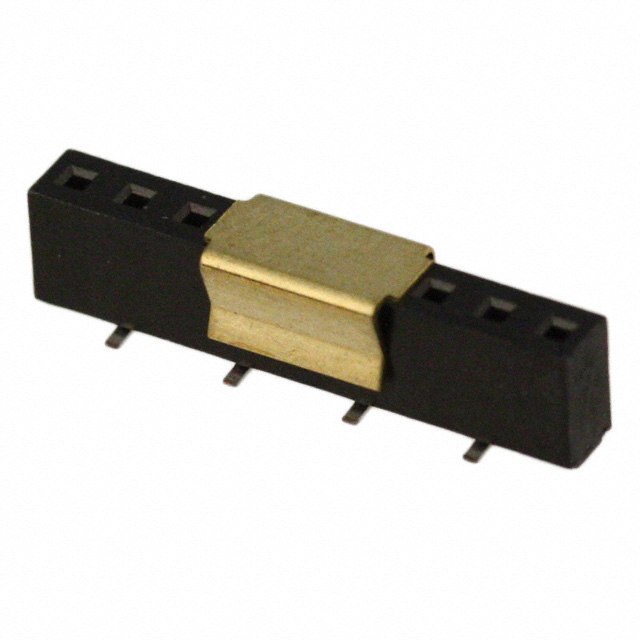

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 953109-2000-AR-PR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 953109-2000-AR-PR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 953109-2000-AR-PR |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET 9POS 2MM VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.949 | $0.863 | $0.739 | $0.616 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 953109-2000-AR-PR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET 9POS 2MM VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58740 pcs | Data sheet | 9531xx-2000-AR-xx Datasheet95x Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 1000VDC |
| Termination | Solder | Style | Board to Board |
| Series | 953 | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Original-Reel® |
| Other Names | 3M9387DKR | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.169" (4.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 9 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | - |
