951120-4620-AR-PR

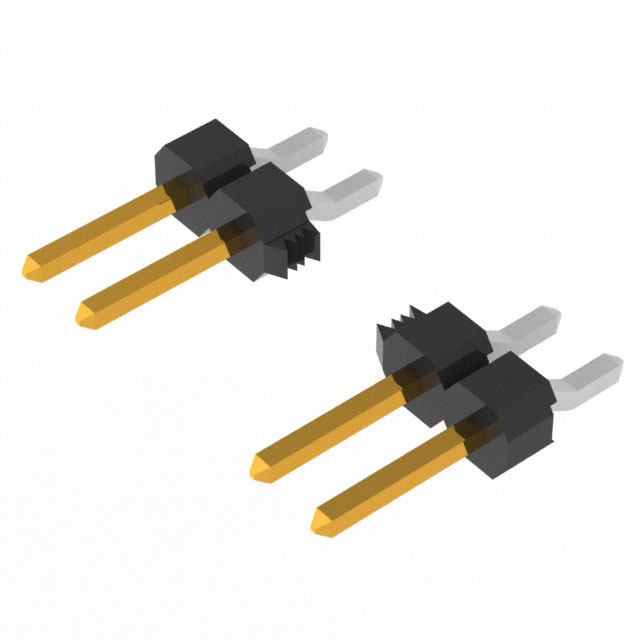

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 951120-4620-AR-PR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 951120-4620-AR-PR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 951120-4620-AR-PR |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 20POS 2MM R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 951120-4620-AR-PR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 20POS 2MM R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4019 pcs | Data sheet | Interconnect Catalog951zzz-4620-AR-zz |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 951 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Original-Reel® | Overall Contact Length | - |
| Other Names | 3M9364DKR | Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.079" (2.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount, Right Angle 20 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.175" (4.45mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
