950430-5002-AR

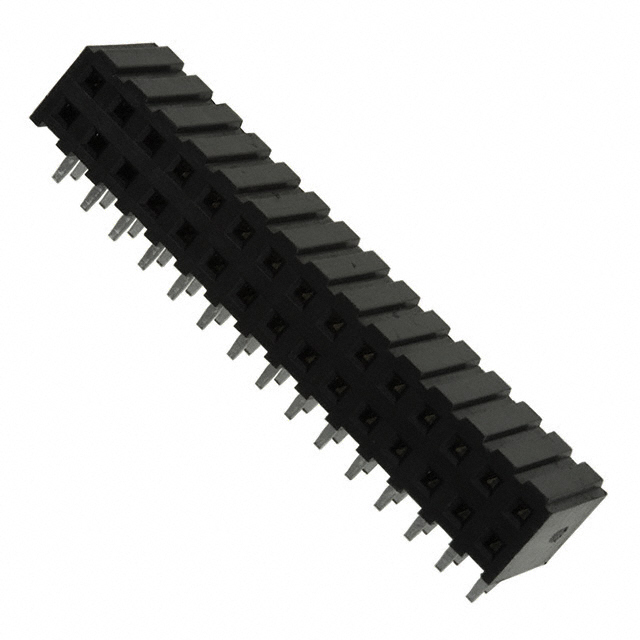

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 950430-5002-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 950430-5002-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 950430-5002-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET 30POS RT/A 2MM T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 200 pcs | 600 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.949 | $1.87 | $1.558 | $1.324 | $1.13 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 950430-5002-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET 30POS RT/A 2MM T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29612 pcs | Data sheet | 950zzz-5002-AR |
| Category | Connectors, Interconnects | Voltage Rating | 1000VDC |
| Termination | Solder | Style | Board to Board |
| Series | 950 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 0-00-51111-04305-9 00051111043059 3M9258 5111104305 51111043059 70-2003-0289-4 70200302894 9504305002AR DE-5000-2791-2 DE500027912 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.191" (4.85mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 30 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
