929870-01-05-RA

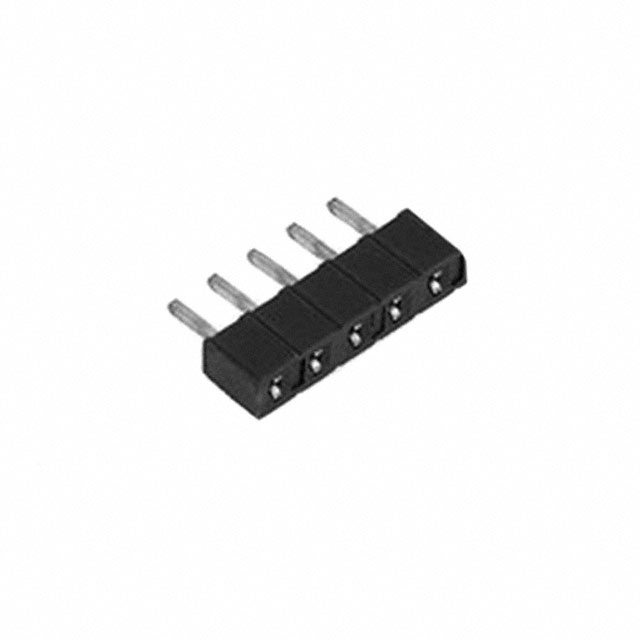

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 929870-01-05-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 929870-01-05-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 929870-01-05-RA |
|---|---|
| Manufacturer | 3M |
| Description | CONN RCPT 5POS STR .100" GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.39 | $0.342 | $0.295 | $0.241 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.214 | $0.188 | $0.178 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 929870-01-05-RA | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN RCPT 5POS STR .100" GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 113210 pcs | Data sheet | 929(870,984) Series Boardmount Socket |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Solder | Style | Board to Board |
| Series | 929 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 05111166538 3M157211 5111166538 51111665381 7010347668 80000909244 929870-01-05-RA-ND 9298700105RA |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.150" (3.81mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 5 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.125" (3.18mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
