929838-04-36-RK

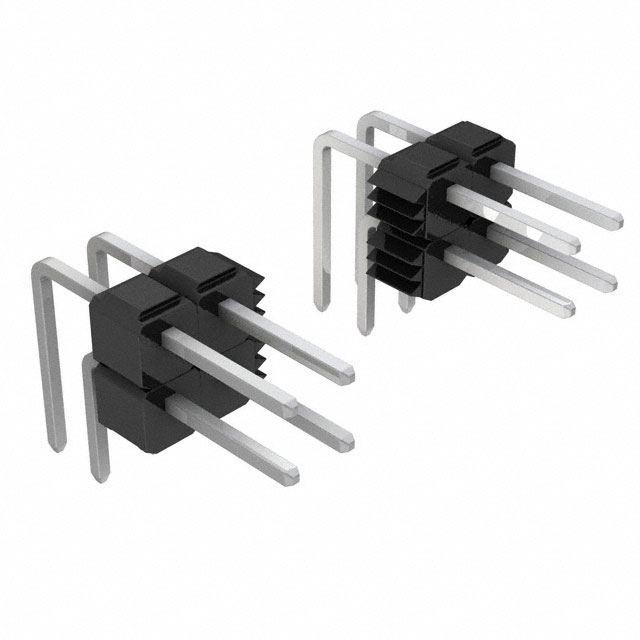

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 929838-04-36-RK with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 929838-04-36-RK with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 929838-04-36-RK |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER .100 DUAL R/A 72POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.236 | $1.187 | $0.989 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.841 | $0.717 | $0.643 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 929838-04-36-RK | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER .100 DUAL R/A 72POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60512 pcs | Data sheet | Interconnect Catalog929 Series, Pin Strip Header, Single/Dual Row Data |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 929 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 3M156513-72 5111166466 51111664667 7010347651 80000908527 9298380436RK 929838E-04-36 929838E-04-36-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 72 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Insulation Height | 0.215" (5.45mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 72 position 0.100" (2.54mm) |
| Current Rating | 2.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.145" (3.68mm) | Contact Length - Mating | 0.235" (5.97mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
