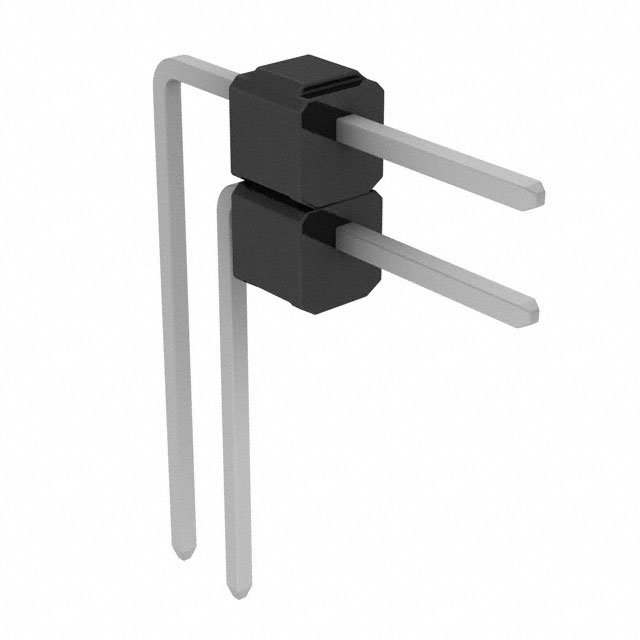

929838-02-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 929838-02-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 929838-02-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 929838-02-01 |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER .100 DUAL R/A 2POS |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 929838-02-01 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER .100 DUAL R/A 2POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4841 pcs | Data sheet | Interconnect Catalog929 Series, Pin Strip Header, Single/Dual Row Data |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 929 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 3M156511-02 929838-02-01-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.215" (5.45mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 2 position |
| Current Rating | 2.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.405" (10.29mm) | Contact Length - Mating | 0.235" (5.97mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header | Applications | - |
