929715-11-01-I

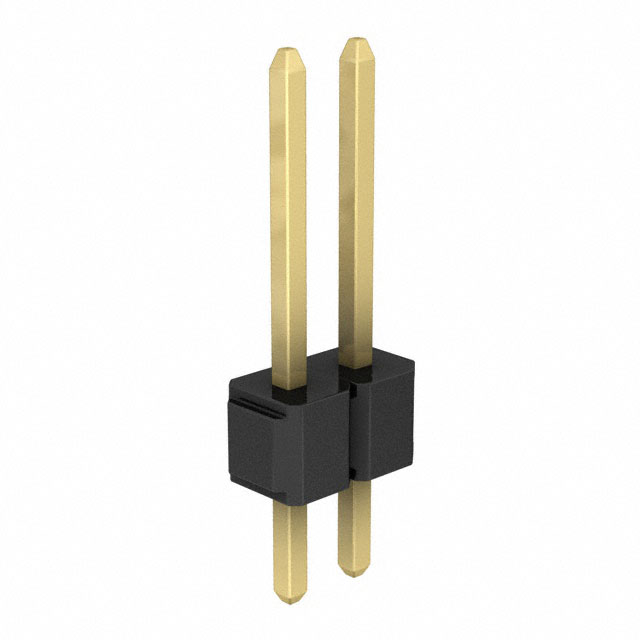

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 929715-11-01-I with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 929715-11-01-I with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 929715-11-01-I |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 2POS DUAL .100 STR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.727 | $0.65 | $0.535 | $0.423 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.363 | $0.331 | $0.319 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 929715-11-01-I | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 2POS DUAL .100 STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75290 pcs | Data sheet | Interconnect Catalog929 Series, Pin Strip Header, Single/Dual Row Data |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 929 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | 0.543" (13.80mm) |
| Other Names | 00076308023072 07630802307 3M156381-02 7630802307 76308023072 80001302365 929715-11-01-I-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 2 position | Current Rating | 2.5A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.125" (3.18mm) |
| Contact Length - Mating | 0.318" (8.08mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
