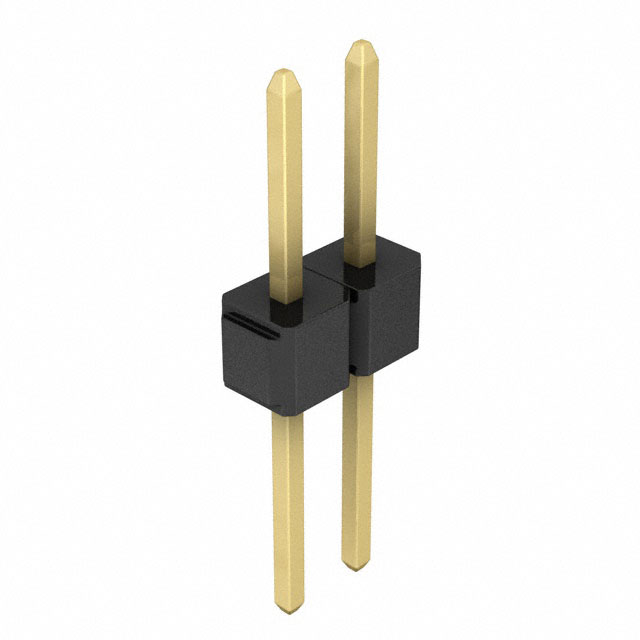

929665-08-01-EU
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 929665-08-01-EU with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 929665-08-01-EU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 929665-08-01-EU |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 2POS STR DUAL .100" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.447 | $0.401 | $0.33 | $0.261 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.224 | $0.204 | $0.197 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 929665-08-01-EU | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 2POS STR DUAL .100" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104086 pcs | Data sheet | Interconnect Catalog929 Series, Pin Strip Header, Single/Dual Row Data |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 929 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | 0.645" (16.38mm) |
| Other Names | 00076308023577 07630802357 3M156321-02 7630802357 76308023577 80-0013-0286-0 80001302860 929665-08-01-EU-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 2 position | Current Rating | 2.5A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.310" (7.87mm) |
| Contact Length - Mating | 0.235" (5.97mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
