929647-07-04-EU

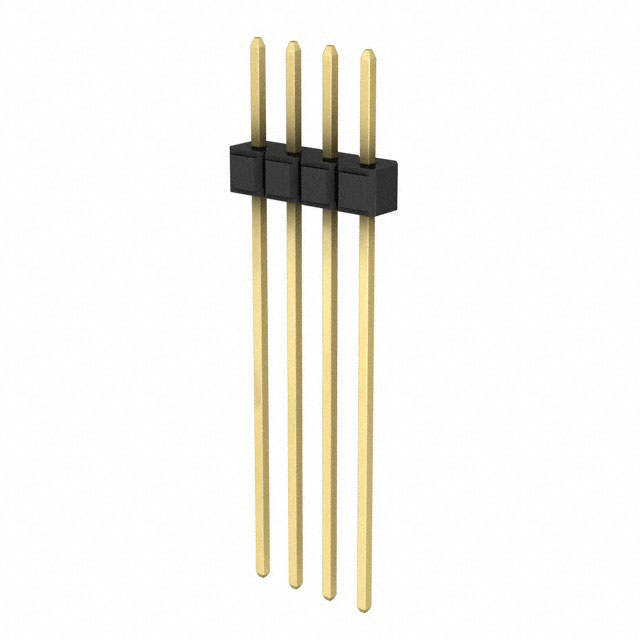

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 929647-07-04-EU with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 929647-07-04-EU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 929647-07-04-EU |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER .100" SNGL STR 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.758 | $0.679 | $0.559 | $0.442 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.379 | $0.346 | $0.333 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 929647-07-04-EU | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER .100" SNGL STR 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58041 pcs | Data sheet | Interconnect Catalog929 Series, Pin Strip Header, Single/Dual Row Data |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 929 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 1.245" (31.62mm) |
| Other Names | 00076308029449 07630802944 3M156523-04 7630802944 76308029449 80001308735 929647-07-04-EU-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) | Current Rating | 2.5A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.910" (23.11mm) |
| Contact Length - Mating | 0.235" (5.97mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
