929647-02-08-I

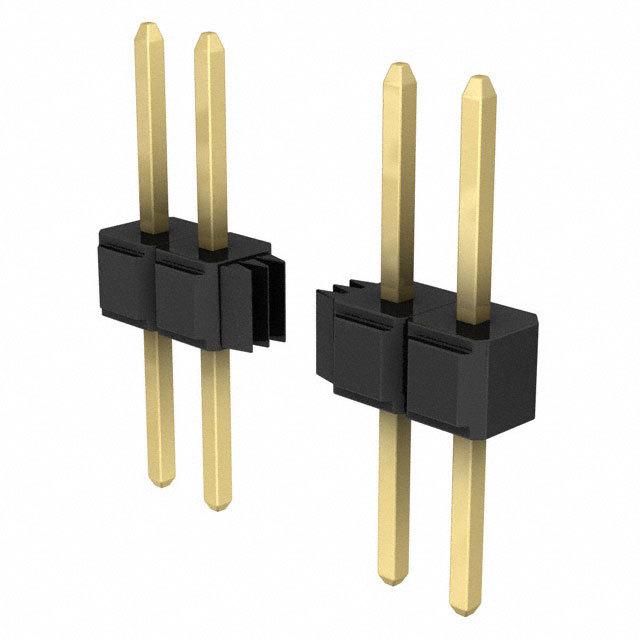

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 929647-02-08-I with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 929647-02-08-I with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 929647-02-08-I |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER .100 SNGL STR 8POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.718 | $0.643 | $0.529 | $0.418 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.359 | $0.328 | $0.315 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 929647-02-08-I | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER .100 SNGL STR 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73301 pcs | Data sheet | Interconnect Catalog929 Series, Pin Strip Header, Single/Dual Row Data |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 929 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.545" (13.84mm) |
| Other Names | 3M156516-08 929647-02-08 929647-02-08-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 8 position 0.100" (2.54mm) |
| Current Rating | 2.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.210" (5.33mm) | Contact Length - Mating | 0.235" (5.97mm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header, Breakaway | Applications | - |
