929500-01-36

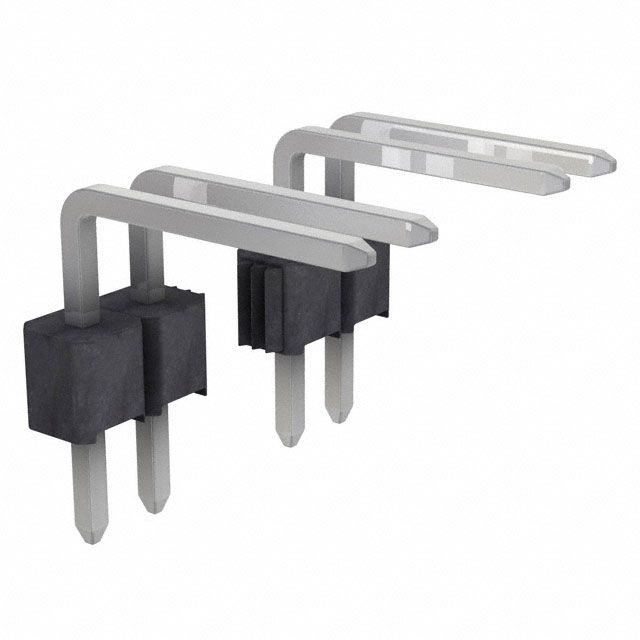

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 929500-01-36 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 929500-01-36 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 929500-01-36 |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER .100 SNGL R/A 36POS |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.926 | $0.84 | $0.72 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.60 | $0.515 | $0.456 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 929500-01-36 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER .100 SNGL R/A 36POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 77214 pcs | Data sheet | Interconnect Catalog9294(00,50), 9R94(00,50) Series, Pin Strip Header |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 929 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 5400780392 54007803928 7010399213 80-6200-0790-8 80620007908 9295000136 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 36 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.110" (2.79mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 36 position 0.100" (2.54mm) |
| Current Rating | 2.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header, Breakaway | Applications | - |
