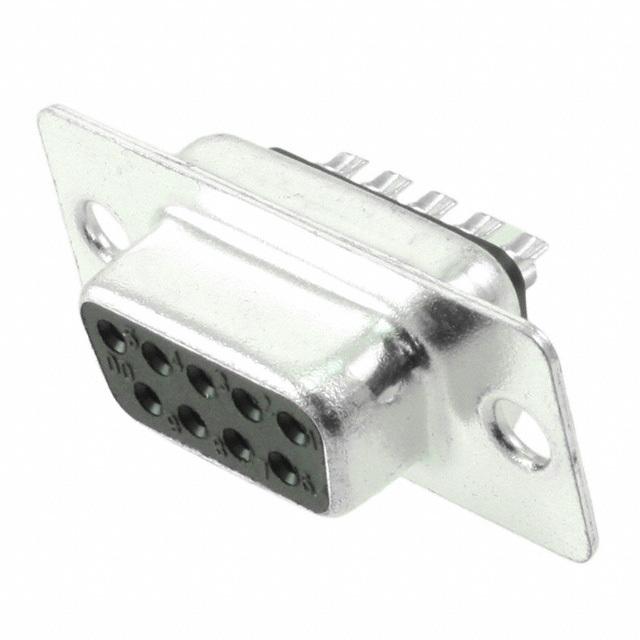

8R09-N001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8R09-N001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8R09-N001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8R09-N001 |
|---|---|
| Manufacturer | 3M |
| Description | CONN D-SUB RCPT 9POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8R09-N001 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5357 pcs | Data sheet | 8Rxx-x00x Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder Cup |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel |
| Series | 8000 | Packaging | Tray |
| Other Names | 00051115598067 05111559806 3M10608 70-0100-2843-2 70010028432 8R09N001 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Thermoplastic |
| Flange Feature | Housing/Shell (Unthreaded) | Features | - |
| Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | - |
| Backset Spacing | - |
