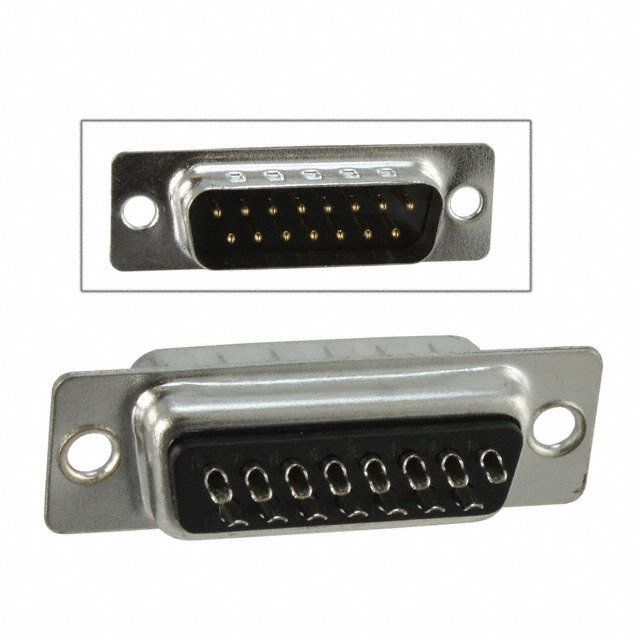

8P15-N001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8P15-N001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8P15-N001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8P15-N001 |
|---|---|
| Manufacturer | 3M |
| Description | CONN D-SUB PLUG 15POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.933 | $0.895 | $0.821 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.783 | $0.746 | $0.653 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8P15-N001 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN D-SUB PLUG 15POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47049 pcs | Data sheet | 8Pxx-x00x Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel |
| Series | 8000 | Packaging | Tray |
| Other Names | 00051115597978 05111559797 3M10605 70-0100-2834-1 70010028341 7010500447 8P15N001 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Thermoplastic |
| Flange Feature | Housing/Shell (Unthreaded) | Features | Grounding Indents |
| Detailed Description | 15 Position D-Sub Plug, Male Pins Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub | Color | - |
| Backset Spacing | - |
