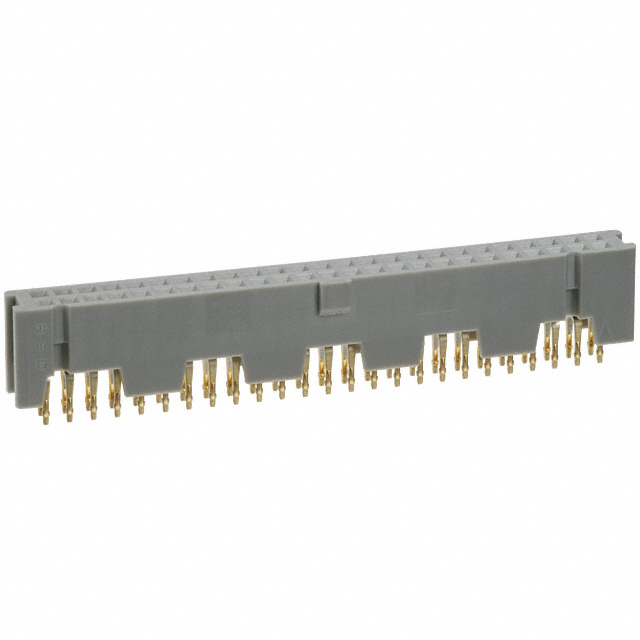

8550-4500PL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8550-4500PL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8550-4500PL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8550-4500PL |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET PCB VERT 50POS .1" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.881 | $2.756 | $2.318 | $1.942 | $1.716 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 8550-4500PL | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET PCB VERT 50POS .1" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20294 pcs | Data sheet | Interconnect Catalog8500 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Kinked Pin, Solder | Style | Board to Board or Cable |
| Series | 8500 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 150318796 4547452253210 47452253210 54745225321 7000090289 85504500PL JE150318796 MSPV50 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.425" (10.80mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Polarizing Key |
| Fastening Type | Push-Pull | Detailed Description | 50 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.110" (2.79mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
