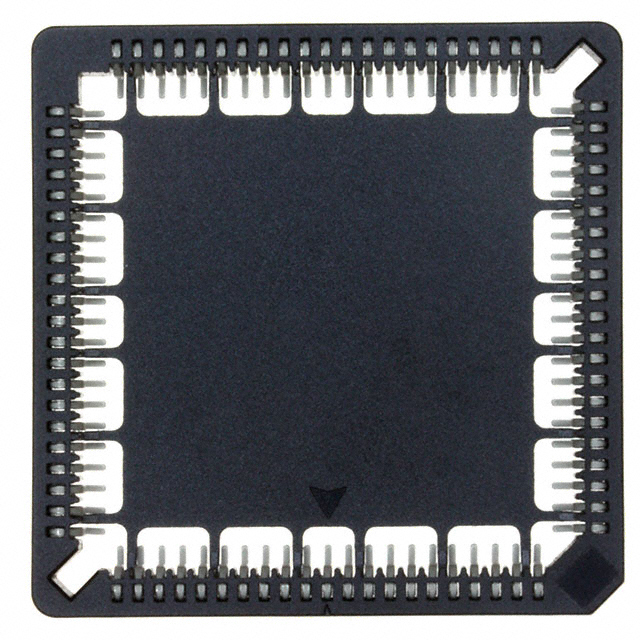

8484-21B1-RK-TP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8484-21B1-RK-TP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8484-21B1-RK-TP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8484-21B1-RK-TP |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET PLCC 84POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.886 | $0.804 | $0.755 | $0.722 | $0.69 | |
| 250 pcs | 500 pcs | 1584 pcs | 3168 pcs | ||
| $0.624 | $0.575 | $0.476 | $0.46 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8484-21B1-RK-TP | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET PLCC 84POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80203 pcs | Data sheet | 8400 Series, Socket SMD Datasheet8400 Series Spec |
| Category | Connectors, Interconnects | Type | PLCC |
| Termination Post Length | 0.132" (3.35mm) | Termination | Solder |
| Series | 8400 | Pitch - Post | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 00051111663189 3M8421B1 5111166318 51111663189 7000057178 80000905366 848421B1RKTP |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 84 (4 x 21) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Copper Alloy | Contact Material - Mating | Copper Alloy |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) | Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
