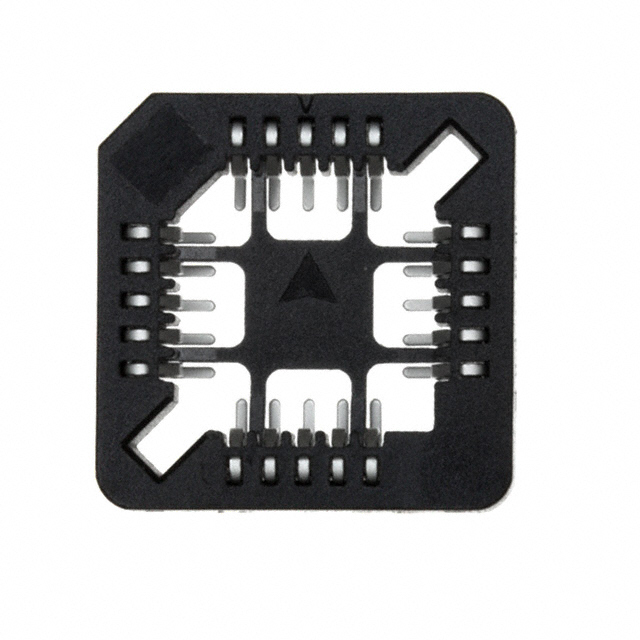

8420-21B1-RK-TP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8420-21B1-RK-TP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8420-21B1-RK-TP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8420-21B1-RK-TP |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET PLCC 20POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.509 | $0.448 | $0.422 | $0.404 | $0.387 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.352 | $0.316 | $0.281 | $0.255 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8420-21B1-RK-TP | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET PLCC 20POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94914 pcs | Data sheet | 8400 Series, Socket SMD Datasheet8400 Series Spec |
| Category | Connectors, Interconnects | Type | PLCC |
| Termination Post Length | 0.132" (3.35mm) | Termination | Solder |
| Series | 8400 | Pitch - Post | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 00051111663127 3M2021B1 5111166312 51111663127 7000057173 80000905309 842021B1RKTP |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 20 (4 x 5) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Copper Alloy | Contact Material - Mating | Copper Alloy |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) | Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
