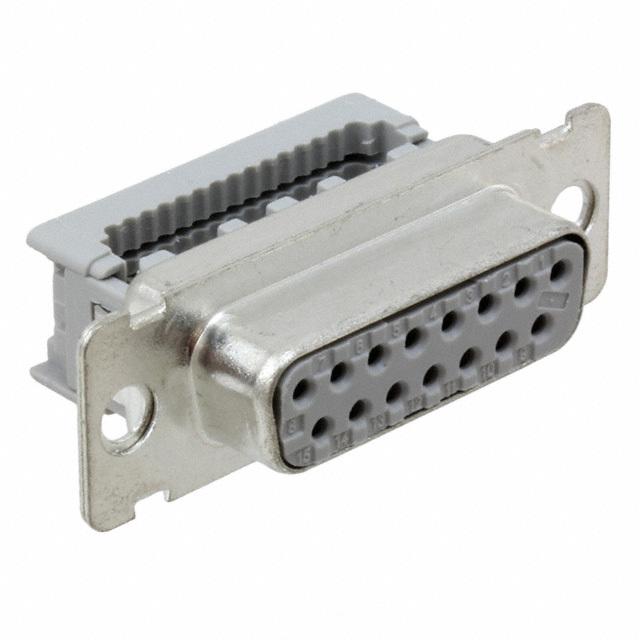

8315-8000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8315-8000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8315-8000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8315-8000 |
|---|---|
| Manufacturer | 3M |
| Description | CONN DSUB RCPT 15POS PNL MNT IDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.813 | $2.694 | $2.46 | $2.343 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.226 | $1.991 | $1.874 | $1.64 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8315-8000 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN DSUB RCPT 15POS PNL MNT IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21472 pcs | Data sheet | 8300 SeriesInterconnect Catalog |
| Category | Connectors, Interconnects | Wire Gauge | 26-28 AWG |
| Voltage Rating | - | Termination | IDC, Ribbon Cable |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | 8300 | Packaging | Bulk |
| Other Names | 05111165430 3M15413 4046719031382 4671903138 7100069554 8315-8000-ND 83158000 DE610007507 DE610012754 UU003115290 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Feed Through | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Gray | Backset Spacing | - |
