8309-8009

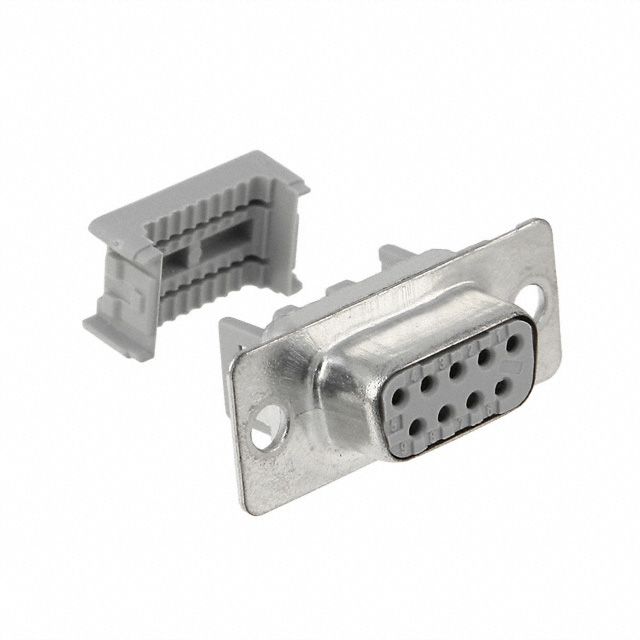

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8309-8009 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8309-8009 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8309-8009 |
|---|---|
| Manufacturer | 3M |
| Description | CONN D-SUB RCPT 9POS PNL MNT IDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | ||||
|---|---|---|---|---|---|
| $1.909 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8309-8009 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS PNL MNT IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17652 pcs | Data sheet | 8300 SeriesInterconnect Catalog |
| Category | Connectors, Interconnects | Wire Gauge | 26-28 AWG |
| Voltage Rating | - | Termination | IDC, Ribbon Cable |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | 8300 | Packaging | Bulk |
| Other Names | 0-40-46719-03119-1 4046719031191 4671903119 7100087927 83098009 DE610012705 UU004869945 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Feed Through | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Gray | Backset Spacing | - |
