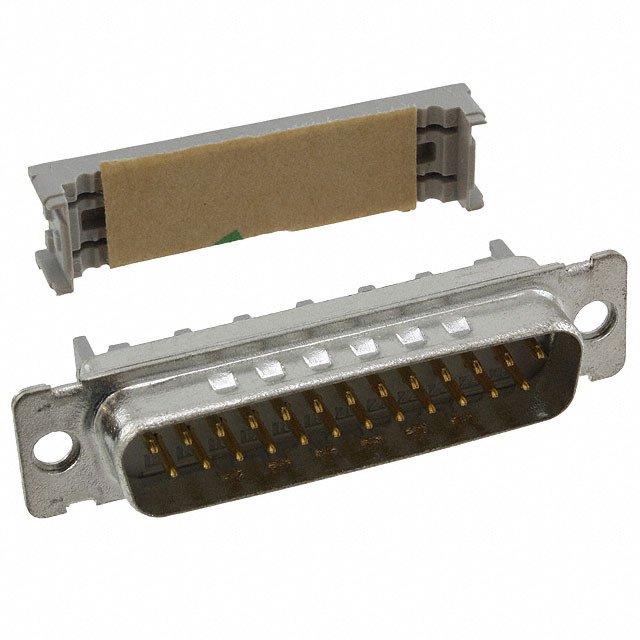

8225-6000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8225-6000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8225-6000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8225-6000 |
|---|---|
| Manufacturer | 3M |
| Description | CONN DSUB PLUG 25POS PNL MNT IDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.938 | $2.816 | $2.571 | $2.448 | ||
| 100 pcs | 300 pcs | 500 pcs | 1000 pcs | ||
| $2.326 | $2.081 | $1.959 | $1.714 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8225-6000 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN DSUB PLUG 25POS PNL MNT IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18490 pcs | Data sheet | Interconnect Catalog8200 Series D Sub Plug Connector |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | IDC, Ribbon Cable |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | 8200 | Packaging | Tray |
| Other Names | 0-40-54596-12113-3 04054596121133 189587056 4001895870569 5113841061 51138410612 7100087758 82256000 DE-6100-0665-7 DE610006657 DE610012010 MMR25K UU-0048-6973-9 UU004869739 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Feed Through, Grounding Indents | Detailed Description | 25 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Gray | Backset Spacing | - |
