81080-660C04-RB

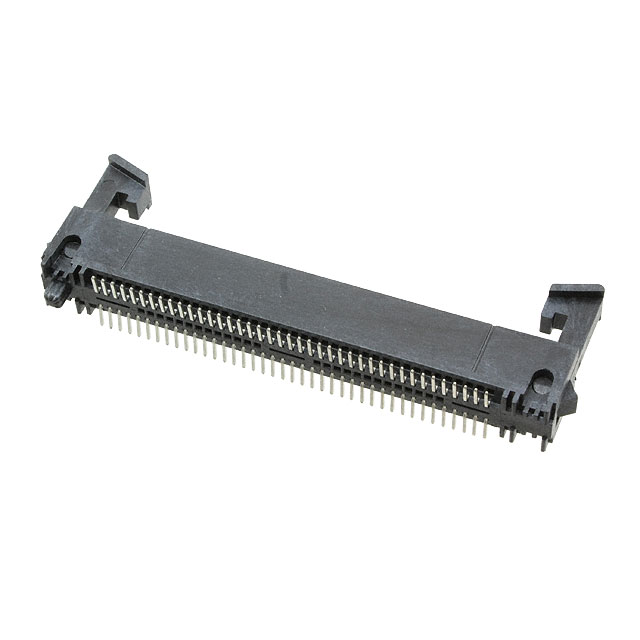

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 81080-660C04-RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 81080-660C04-RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 81080-660C04-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 80POS STR LONG SM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | ||||
|---|---|---|---|---|---|
| $5.86 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 81080-660C04-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 80POS STR LONG SM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5300 pcs | Data sheet | 810 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 810 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 05111165900 5111165900 51111659007 7000057142 80000901969 81080660C04RB |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 80 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.405" (10.29mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Surface Mount 80 position 0.050" (1.27mm) |
| Current Rating | 0.75A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.140" (3.56mm) |
| Contact Finish Thickness - Post | 250.0µin (6.35µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
