81060-M00203-RB

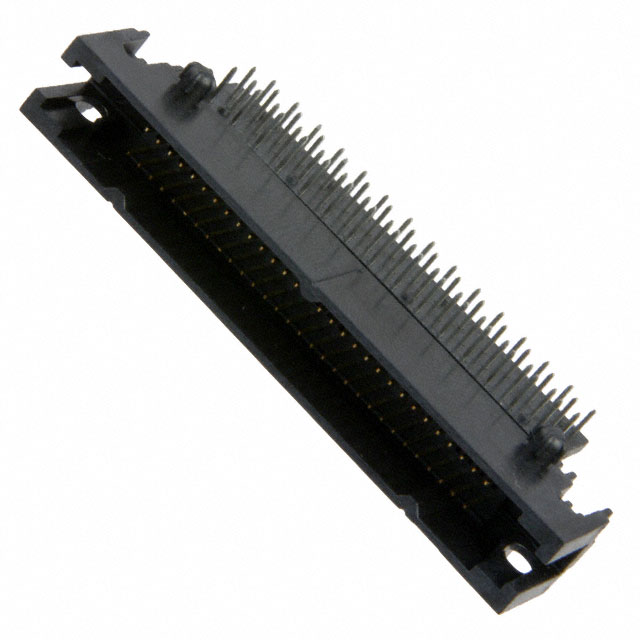

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 81060-M00203-RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 81060-M00203-RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 81060-M00203-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 60POS R/A 4ROW SL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 81060-M00203-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 60POS R/A 4ROW SL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5739 pcs | Data sheet | 810 Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 810 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 05111165889 80000901852 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | - | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.310" (7.87mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 60 position 0.050" (1.27mm) | Current Rating | 0.5A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.140" (3.56mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
