Home > Products > Connectors, Interconnects > Backplane Connectors - DIN 41612 > 7164-50B2TH

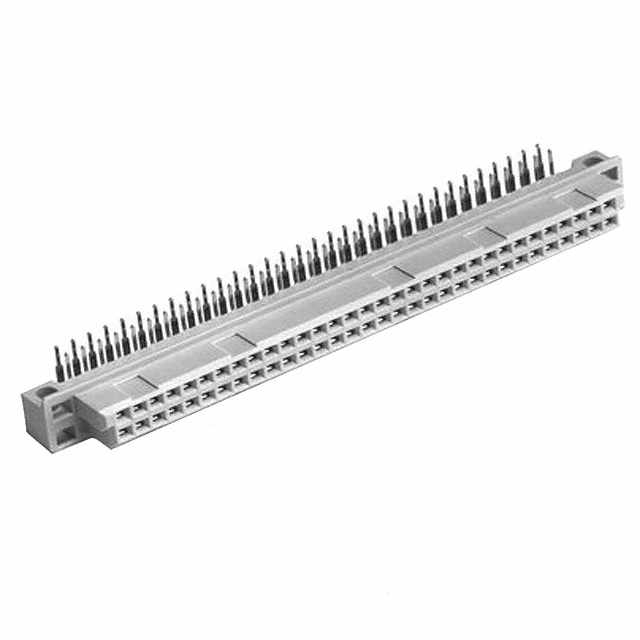

7164-50B2TH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7164-50B2TH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	7164-50B2TH
Manufacturer	3M
Description	CONN SOCKET 64POS RIGHT ANGLE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 14888 pcs
Reference Price (In US Dollars)	500 pcs
Reference Price (In US Dollars)	$2.092

Product parameter
Data sheet

Product parameter

Part Number	7164-50B2TH	Manufacturer	3M
Description	CONN SOCKET 64POS RIGHT ANGLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14888 pcs	Data sheet	7164 Series, Inverse DIN 41612
Category	Connectors, Interconnects	Termination	Solder
Style	Q	Series	7164
Pitch	0.100" (2.54mm)	Packaging	Bulk
Other Names	5400777810 54007778103 716450B2TH 80610603237 Q1193334	Operating Temperature	-55°C ~ 125°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	64	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Material - Insulation	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Manufacturer Standard Lead Time	3 Weeks
Level, Class	2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Current Rating	3A
Contact Finish Thickness	15.0µin (0.38µm)	Contact Finish	Gold
Connector Type	Receptacle, Female Sockets
