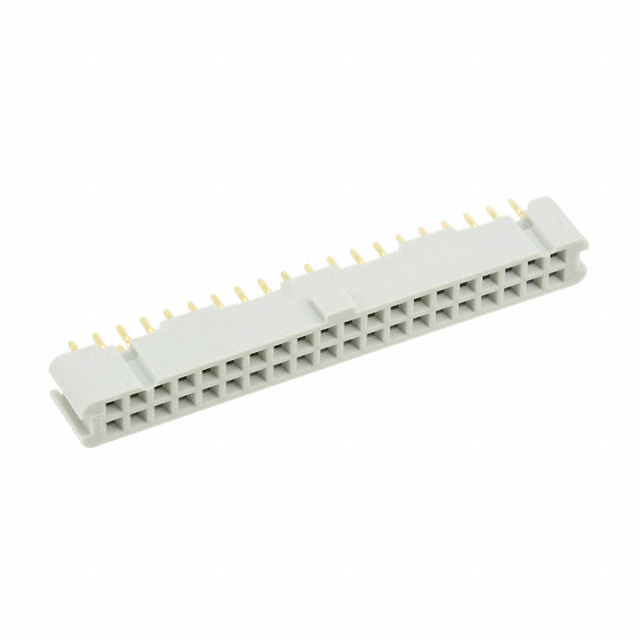

6840-4500PL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6840-4500PL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6840-4500PL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6840-4500PL |
|---|---|
| Manufacturer | 3M |
| Description | 40/2R/BM SKT/.100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $1.989 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6840-4500PL | Manufacturer | 3M |
|---|---|---|---|
| Description | 40/2R/BM SKT/.100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16045 pcs | Data sheet | Interconnect Catalog6800 Series Polarized Boardmount Socket |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Kinked Pin, Solder | Style | Board to Board or Cable |
| Series | 6800 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 0-45-47452-51415-1 4547452514151 54745251415 68404500PL 7000007625 JE150344164 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.283" (7.19mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Polarizing Key |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.110" (2.79mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
