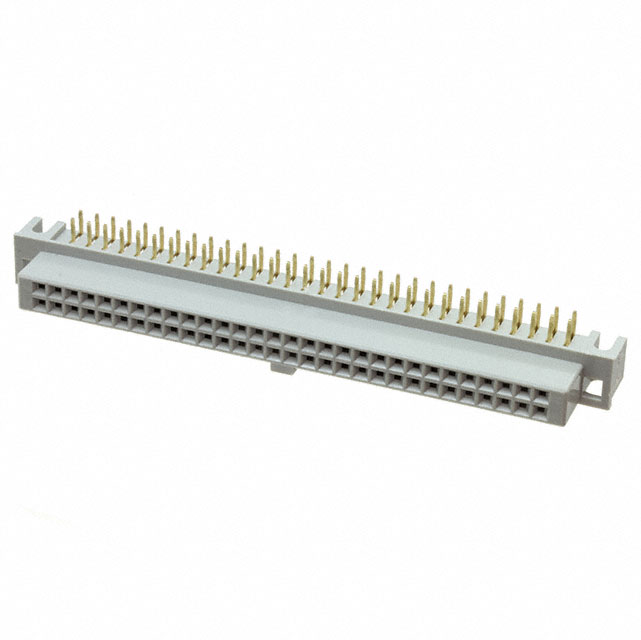

5160-B7A2PL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5160-B7A2PL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5160-B7A2PL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5160-B7A2PL |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET 60POS R/A DL .100" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.719 | $4.29 | $3.647 | $3.11 | $2.853 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 5160-B7A2PL | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET 60POS R/A DL .100" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13208 pcs | Data sheet | 5100 Series Polarized Brdmnt Sckt w/ Rt. Angle Sol |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | 5100 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 04547452514236 3M157763 5160-B7A2PL-ND 7000090365 JE150344248 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Mounting Flange, Polarizing Key |
| Fastening Type | Push-Pull | Detailed Description | 60 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.102" (2.60mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
