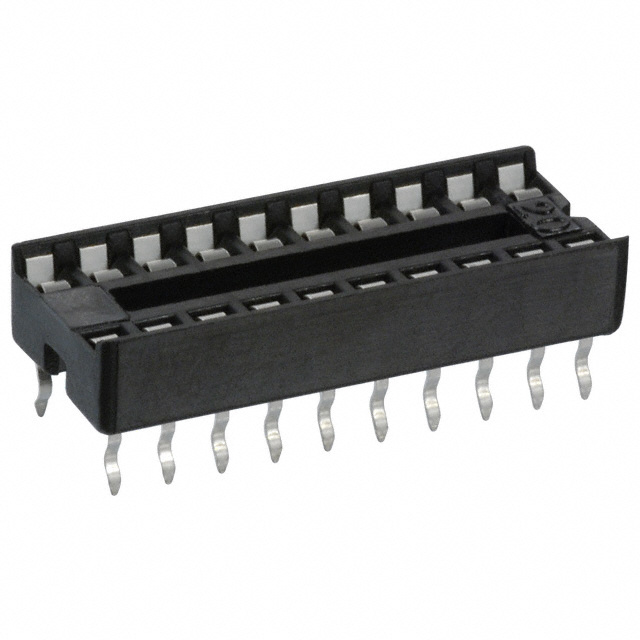

4820-3004-CP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4820-3004-CP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4820-3004-CP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4820-3004-CP |
|---|---|
| Manufacturer | 3M |
| Description | CONN IC DIP SOCKET 20POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.229 | $0.215 | $0.193 | $0.172 | $0.165 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.15 | $0.143 | $0.118 | $0.107 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4820-3004-CP | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 20POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 199916 pcs | Data sheet | 4800 Series |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | - | Termination | Solder |
| Series | 4800 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 00051111752388 3M5477 48203004CP 5111175238 51111752388 7010501772 80000913139 |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions or Pins (Grid) | 20 (2 x 10) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyester, Glass Filled | Features | Open Frame |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | 35.0µin (0.90µm) | Contact Finish Thickness - Mating | 35.4µin (0.90µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
