45206-520230

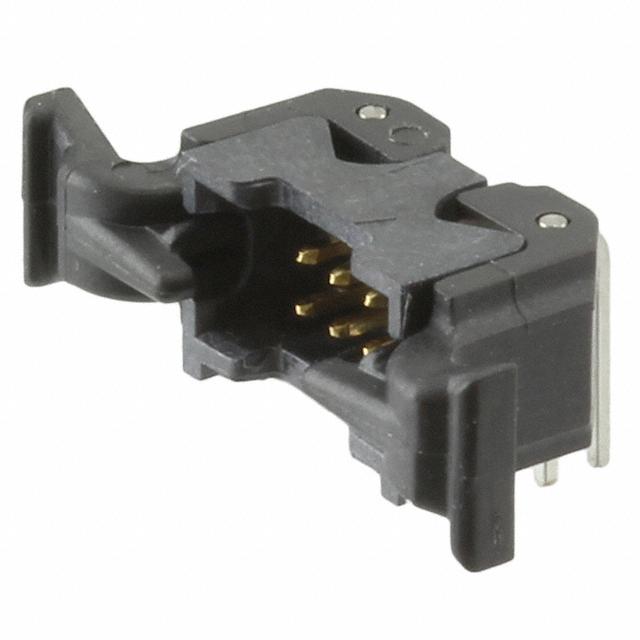

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 45206-520230 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 45206-520230 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 45206-520230 |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER .05" 6POS RA T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 204 pcs | ||||
|---|---|---|---|---|---|
| $1.575 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 45206-520230 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER .05" 6POS RA T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21678 pcs | Data sheet | 451, 452 Socket/Header Series451, 452 Series Product Spec452 Series Conn. System Mated Dims Drawing452 BrdMnt Header Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 452 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 00076308615826 3M15581 45206-520230-ND 7010348051 76308615826 80001405473 |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.210" (5.33mm) | Insulation Color | - |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks, Short | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.050" (1.27mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.094" (2.40mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
