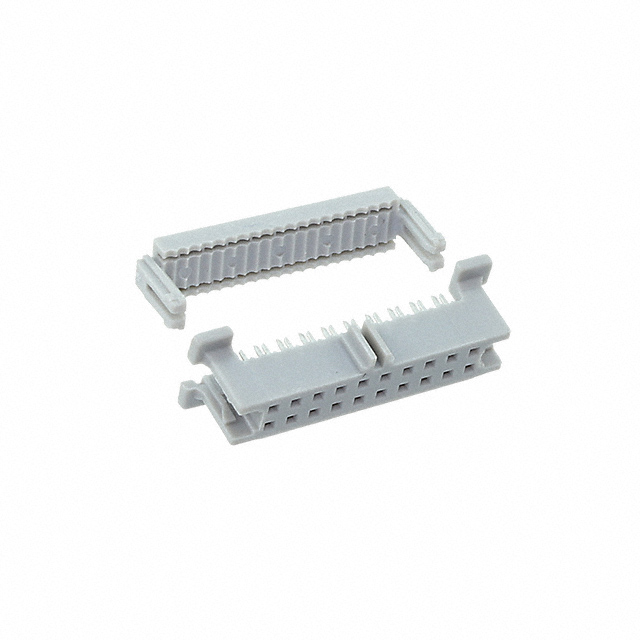

45120-010030
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 45120-010030 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 45120-010030 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 45120-010030 |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET 20POS WIREMOUNT .050 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 216 pcs |
|---|---|---|---|---|---|
| $1.951 | $1.873 | $1.717 | $1.639 | $1.561 | |
| 432 pcs | 648 pcs | 1080 pcs | 2592 pcs | ||
| $1.366 | $1.327 | $1.132 | $1.054 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 45120-010030 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET 20POS WIREMOUNT .050 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31409 pcs | Data sheet | 451, 452 Socket/Header Series451, 452 Series Product Spec451 Ribbon Cable Socket Series Drawing |
| Category | Connectors, Interconnects | Wire Type | Ribbon Cable |
| Wire Gauge | 30 AWG | Series | 451 |
| Row Spacing | 0.050" (1.27mm) | Pitch | 0.050" (1.27mm) |
| Packaging | Tray | Other Names | 00076308616625 3M15517 45120-010030-ND 7100029465 76308616625 80001406273 |
| Number of Rows | 2 | Number of Positions | 20 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Feed Through, Polarizing Key | Fastening Type | - |
| Detailed Description | 20 Position Rectangular Receptacle Connector IDC Gold 30 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Color | - |
| Cable Termination | IDC |
