3793-600T02TC

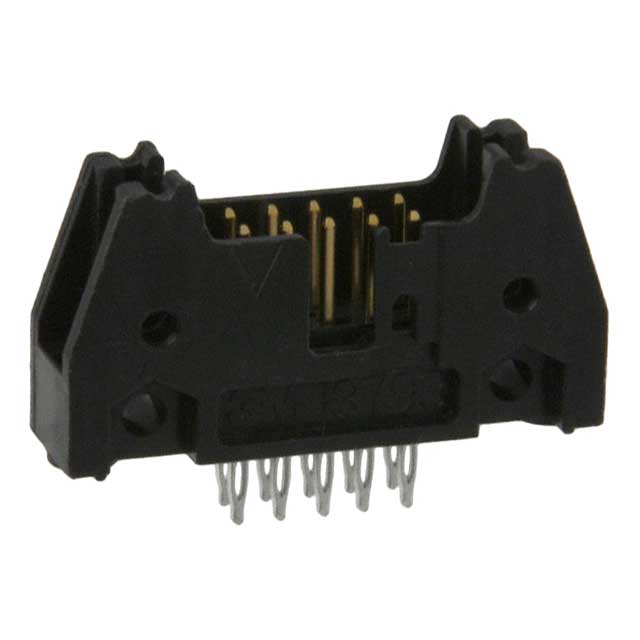

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3793-600T02TC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3793-600T02TC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3793-600T02TC |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 10POS STR NO LATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 450 pcs | ||||
|---|---|---|---|---|---|
| $1.623 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3793-600T02TC | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 10POS STR NO LATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22186 pcs | Data sheet | 3000 Series Four-Wall Header Compliant PinInterconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.715" (18.16mm) |
| Other Names | 00076308706913 05113841736 07630870691 3793600T02TC 5113841736 51138417369 80001416496 80610800262 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Insulation Height | 0.680" (17.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.175" (4.45mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
