35610-5253-B00PE

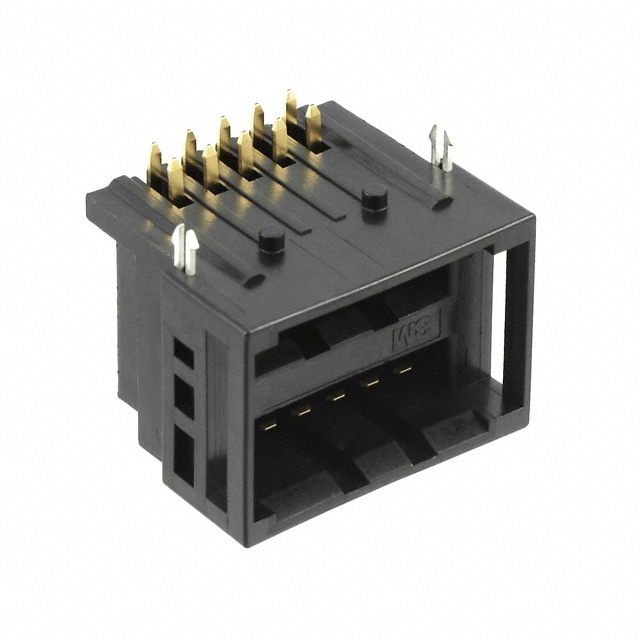

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 35610-5253-B00PE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 35610-5253-B00PE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 35610-5253-B00PE |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER RA DUAL B POL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $1.754 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 35610-5253-B00PE | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER RA DUAL B POL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17414 pcs | Data sheet | 356 Series3M Power Clamp System |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Power Clamp, 356 |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0-45-47452-95882-5 356105253B00PE 4547452958825 54745295882 7000090452 JE150382669 |
Operating Temperature | -20°C ~ 75°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.720" (18.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Board Lock |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
