3429-5202
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3429-5202 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3429-5202 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3429-5202 |
|---|---|
| Manufacturer | 3M |

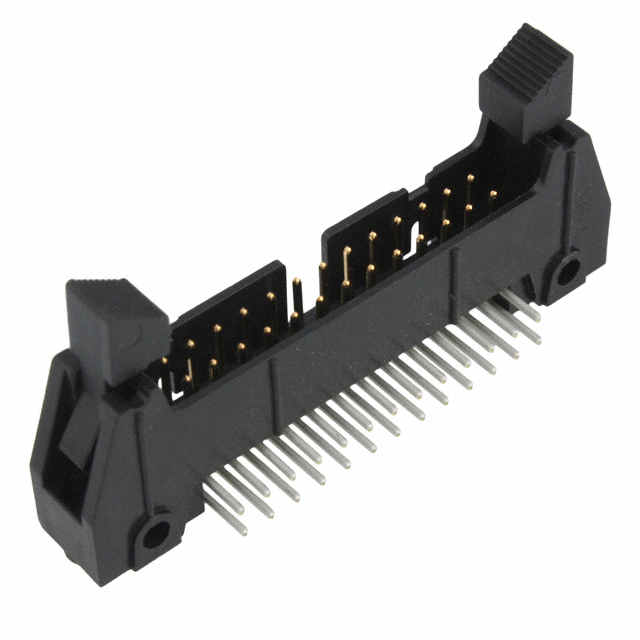

| Description | CONN 26 HDR, RT, W/LATCH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $1.201 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3429-5202 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 26 HDR, RT, W/LATCH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 27561 pcs | Data sheet | Interconnect Catalog3000 Series, Four-Wall Header Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 00076308635305 07630863530 3429-5502 3429-5502-ND 34295202 34295502 5113861632 51138616328 5400732772 54007327721 80001414889 80610097612 80610469464 Q1013154 Q1139104 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.340" (8.64mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Short | Detailed Description | Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm) |
| Current Rating | 1.75A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
