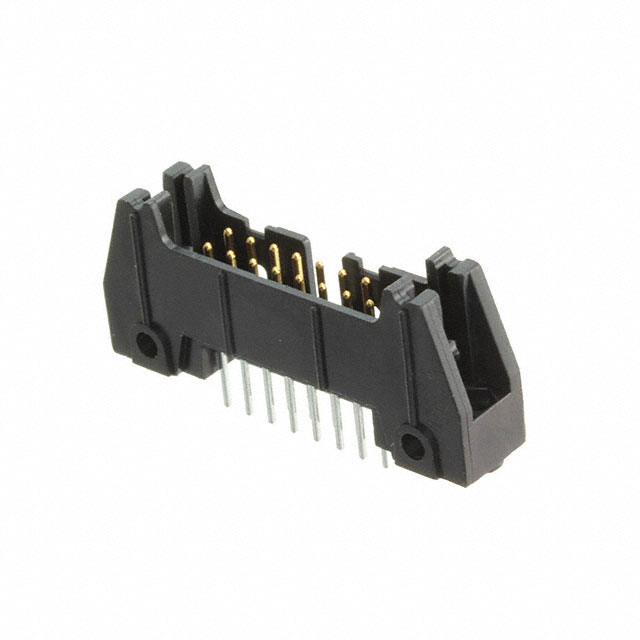

3408-6002
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3408-6002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3408-6002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3408-6002 |
|---|---|
| Manufacturer | 3M |
| Description | PROTECT HEADER STRT 16 CONTACT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.161 | $1.114 | $0.929 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.789 | $0.673 | $0.604 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3408-6002 | Manufacturer | 3M |
|---|---|---|---|
| Description | PROTECT HEADER STRT 16 CONTACT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 61487 pcs | Data sheet | Interconnect Catalog3000 Series, Four-Wall Header Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.652" (16.56mm) |
| Other Names | 00076308634797 07630863479 34086002 5400732732 54007327325 80-6100-9720-8 80610097208 MHS16G MHS16K |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.680" (17.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
