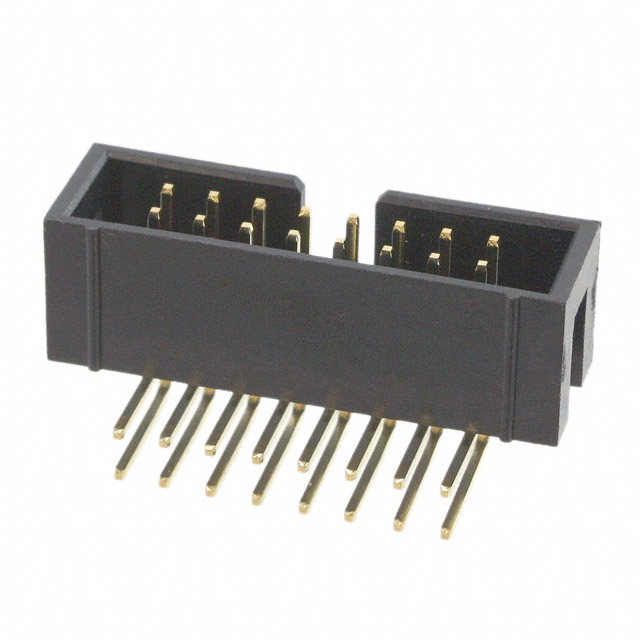

30316-5002HB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 30316-5002HB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 30316-5002HB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 30316-5002HB |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 16POS DL R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.532 | $0.483 | $0.414 | $0.345 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.296 | $0.262 | $0.256 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 30316-5002HB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 16POS DL R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87221 pcs | Data sheet | 303xx-(5,6)002HB Low Profile Header |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 303 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 00051111617830 05111161783 30316-5002HB-ND 303165002HB 3M11930 5111161783 51111617830 7100153081 SE008001783 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.331" (8.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
