280-5205-01

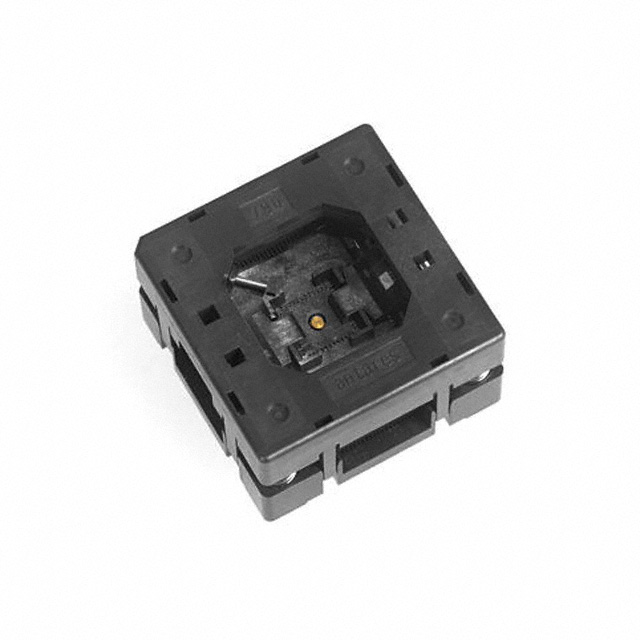

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 280-5205-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 280-5205-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 280-5205-01 |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET QFN 80POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $43.078 | $40.544 | $39.277 | $36.743 | $34.716 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 280-5205-01 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET QFN 80POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1094 pcs | Data sheet | Textool™Open-Top Socket for QFN Appl SpecSOIC Socket Pin SequenceTextool™ Series Bulletin280-5205-01 Drawing |
| Category | Connectors, Interconnects | Type | QFN |
| Termination Post Length | 0.114" (2.90mm) | Termination | Solder |
| Series | Textool™ | Pitch - Post | 0.020" (0.50mm) |
| Pitch - Mating | 0.020" (0.50mm) | Packaging | Tray |
| Other Names | 280520501 3M10831 5111560243 51115602436 7010395467 80001386103 |
Operating Temperature | - |
| Number of Positions or Pins (Grid) | 80 (4 x 20) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyethersulfone (PES) | Features | Open Frame |
| Contact Resistance | 25 mOhm | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
