| Part Number | 2526-5002UG |
|---|---|
| Manufacturer | 3M |

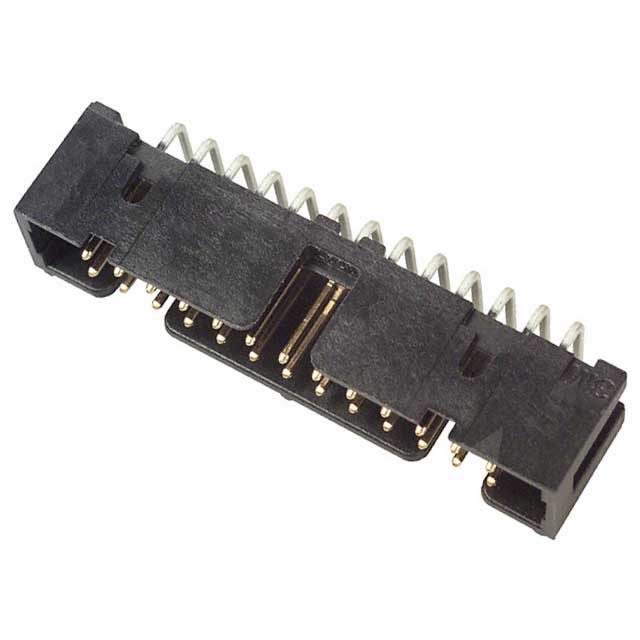

| Description | CONN HEADER 26POS R/A GOLD T/H |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1176 pcs | ||||
|---|---|---|---|---|---|
| $0.561 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2526-5002UG | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 26POS R/A GOLD T/H | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 59227 pcs | Data sheet | Interconnect Catalog2500 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 2500 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 00076308707507 05400782732 07630870750 7010395618 7630870750 76308707507 80001417080 80610565220 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.338" (8.59mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm) |
| Current Rating | 1.75A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.243" (6.17mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
