232-1285-00-0602J

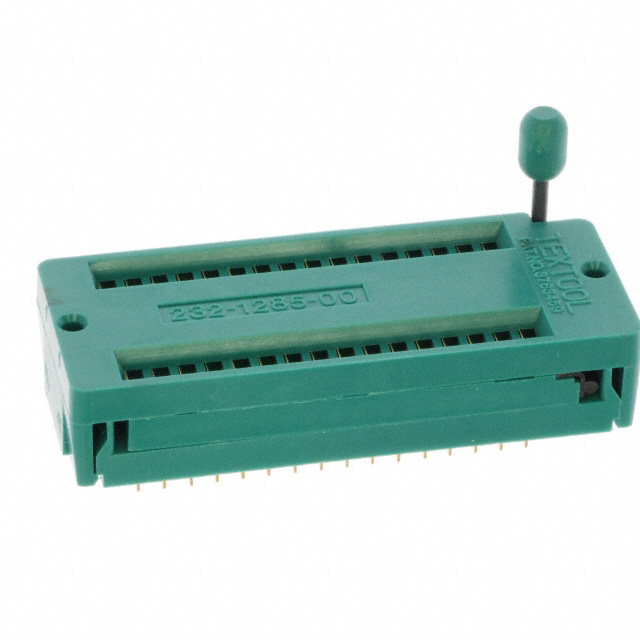

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 232-1285-00-0602J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 232-1285-00-0602J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 232-1285-00-0602J |
|---|---|
| Manufacturer | 3M |
| Description | CONN IC DIP SOCKET ZIF 32POS GLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.289 | $6.579 | $6.303 | $5.909 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.712 | $5.397 | $5.239 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 232-1285-00-0602J | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN IC DIP SOCKET ZIF 32POS GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6823 pcs | Data sheet | .100" (2.54 mm) DIP SocketsSOIC Socket Pin Sequence |
| Category | Connectors, Interconnects | Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing |
| Termination Post Length | 0.110" (2.78mm) | Termination | Press-Fit |
| Series | Textool™ | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 0 54007 46503 4 20032012850000060 20032012850000060-ND 2003201285000006003 2003201285000006003- 232-1285-00-0602J-ND 2321285000602J 3M5076 5400746503 54007465034 7000007720 JE160003248 |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 32 (2 x 16) | Mounting Type | Connector |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polysulfone (PSU), Glass Filled | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
