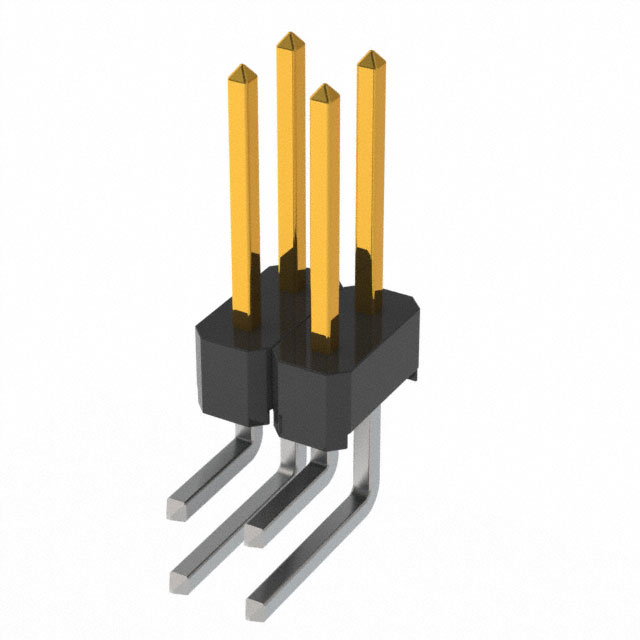

2304-5221-TG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2304-5221-TG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2304-5221-TG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2304-5221-TG |
|---|---|
| Manufacturer | 3M |
| Description | PIN STRIP HEADER 4 PIN RIGHT ANG |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.109 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2304-5221-TG | Manufacturer | 3M |
|---|---|---|---|
| Description | PIN STRIP HEADER 4 PIN RIGHT ANG | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 195703 pcs | Data sheet | 2300 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | 2300 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 00051115582707 05111558270 7010352701 SE008018241 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.242" (6.14mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.318" (8.08mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
