228-1277-00-0602J

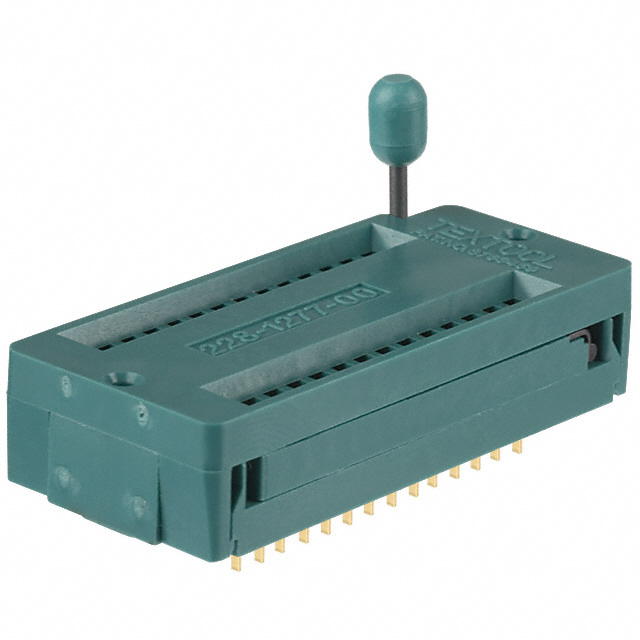

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 228-1277-00-0602J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 228-1277-00-0602J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 228-1277-00-0602J |
|---|---|
| Manufacturer | 3M |
| Description | CONN IC DIP SOCKET ZIF 28POS GLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.408 | $6.688 | $6.408 | $6.007 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.807 | $5.487 | $5.327 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 228-1277-00-0602J | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN IC DIP SOCKET ZIF 28POS GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6733 pcs | Data sheet | .100" (2.54 mm) DIP SocketsSOIC Socket Pin Sequence |
| Category | Connectors, Interconnects | Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing |
| Termination Post Length | 0.110" (2.78mm) | Termination | Press-Fit |
| Series | Textool™ | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 2002803345-000006002 228-3345-00-0602 2281277000602J 3M2802 5113876534 51138765347 5400733211 54007332114 7000007336 80-6101-0432-7 80610104327 JE-1500-8410-9 JE150084109 |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 28 (2 x 14) | Mounting Type | Connector |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polysulfone (PSU), Glass Filled | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
