220-3342-00-0602J

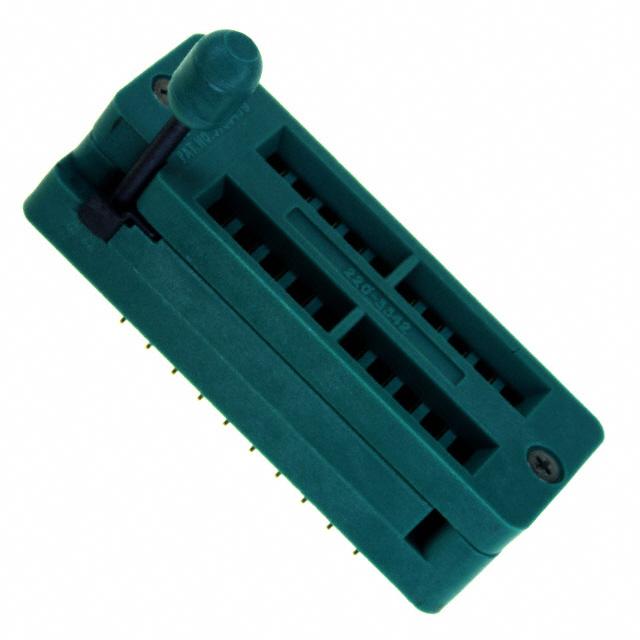

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 220-3342-00-0602J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 220-3342-00-0602J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 220-3342-00-0602J |
|---|---|
| Manufacturer | 3M |
| Description | CONN IC DIP SOCKET ZIF 20POS GLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.008 | $6.508 | $5.841 | $5.674 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.006 | $4.673 | $4.572 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 220-3342-00-0602J | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN IC DIP SOCKET ZIF 20POS GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7326 pcs | Data sheet | .100" (2.54 mm) DIP SocketsSOIC Socket Pin Sequence |
| Category | Connectors, Interconnects | Type | DIP, ZIF (ZIP), 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.110" (2.78mm) | Termination | Press-Fit |
| Series | Textool™ | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 2-002003342000006002 2002003342-000006002 220-3342-00-0602 2203342000602J 3M2002 51138-69542-2 5113869542 51138695422 5400733892 54007338925 7000007706 80-6101-2473-9 80610124739 JE-1509-0022-1 JE150900221 |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 20 (2 x 10) | Mounting Type | Connector |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polysulfone (PSU), Glass Filled | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
