159120-2002
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 159120-2002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 159120-2002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 159120-2002 |
|---|---|
| Manufacturer | 3M |

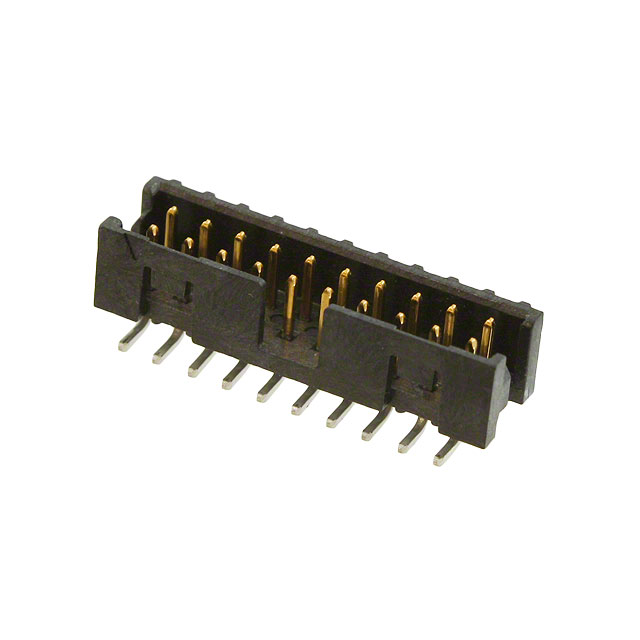

| Description | CONN HEADER 2MM 20POS VRT AU SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.835 | $1.762 | $1.468 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 159120-2002 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 2MM 20POS VRT AU SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23411 pcs | Data sheet | 159 Series |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 159 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | 3M9703 3M9703-ND 3M9703CT |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.210" (5.33mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 20 position 0.079" (2.00mm) |
| Current Rating | 1.25A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.142" (3.61mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
