158224-0220

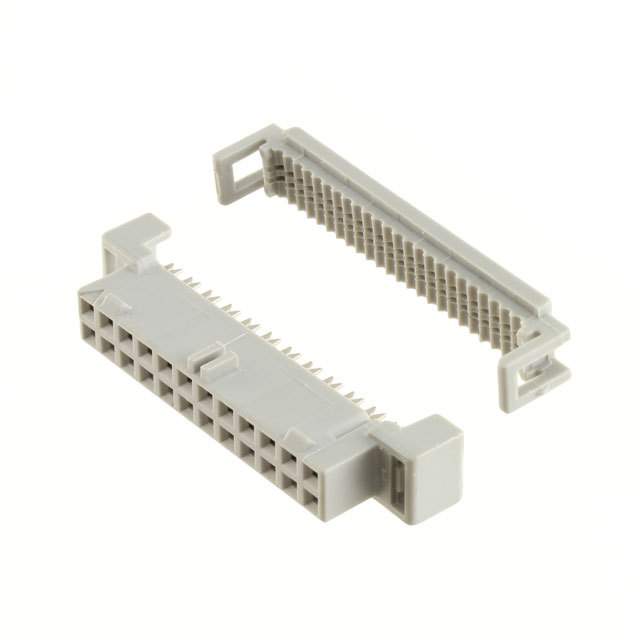

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 158224-0220 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 158224-0220 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 158224-0220 |
|---|---|
| Manufacturer | 3M |
| Description | 2MM RIBBON CABLE SOCKET 24 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.264 | $1.214 | $1.113 | $1.062 | $1.012 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.885 | $0.86 | $0.733 | $0.683 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 158224-0220 | Manufacturer | 3M |
|---|---|---|---|
| Description | 2MM RIBBON CABLE SOCKET 24 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44407 pcs | Data sheet | 158 Series Drawing |
| Category | Connectors, Interconnects | Wire Type | Ribbon Cable |
| Wire Gauge | 28 AWG | Series | 158 |
| Row Spacing | 0.079" (2.00mm) | Pitch | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | 00051115597909 05111559790 7010395438 80001384140 |
| Number of Rows | 2 | Number of Positions | 24 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Feed Through | Fastening Type | Friction Lock |
| Detailed Description | 24 Position Rectangular Socket Connector IDC Gold 28 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Socket | Color | Gray |
| Cable Termination | IDC |
