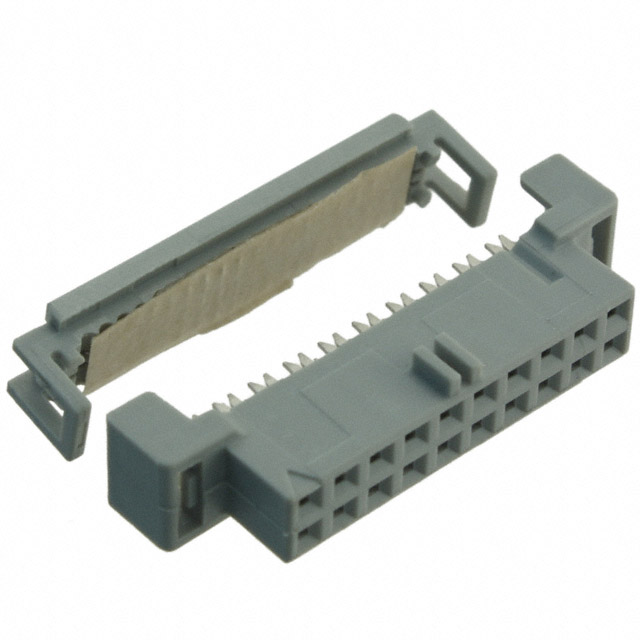

158120-1100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 158120-1100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 158120-1100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 158120-1100 |
|---|---|
| Manufacturer | 3M |
| Description | CABLE RIBBON SKT 2MM 20POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.562 | $1.50 | $1.375 | $1.312 | $1.25 | |
| 384 pcs | 768 pcs | 1152 pcs | 2688 pcs | ||
| $1.094 | $0.969 | $0.906 | $0.844 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 158120-1100 | Manufacturer | 3M |
|---|---|---|---|
| Description | CABLE RIBBON SKT 2MM 20POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40137 pcs | Data sheet | 158 Series Drawing |
| Category | Connectors, Interconnects | Wire Type | Ribbon Cable |
| Wire Gauge | 28 AWG | Series | 158 |
| Row Spacing | 0.079" (2.00mm) | Pitch | 0.079" (2.00mm) |
| Packaging | Tray | Other Names | 0-0-51111-96814-7 0-00-51111-96814-7 158120-1100-ND 1581201100 3M156027 7000057406 80-0012-5133-1 80001251331 |
| Number of Rows | 2 | Number of Positions | 20 |
| Mounting Type | Free Hanging (In-Line) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Feed Through |
| Fastening Type | - | Detailed Description | 20 Position Rectangular Socket Connector IDC Gold 28 AWG |
| Contact Type | Female Socket | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Socket |
| Color | Gray | Cable Termination | IDC |
