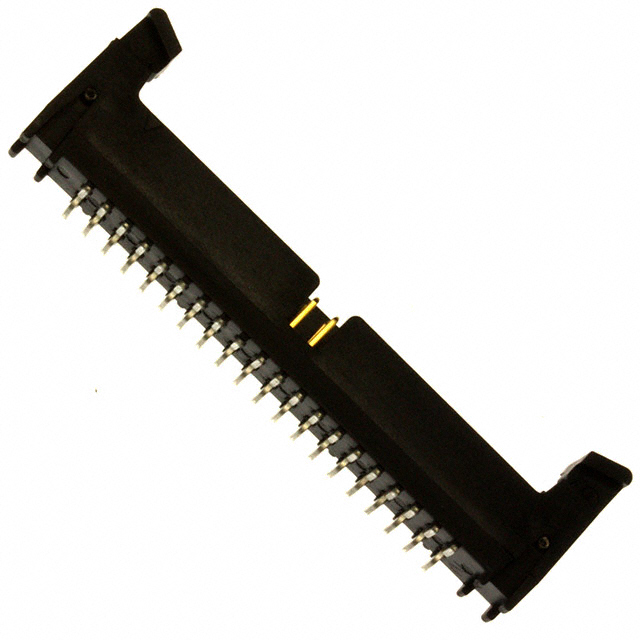

155240-2300-RB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 155240-2300-RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 155240-2300-RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 155240-2300-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 2MM 40POS VERT SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $5.257 | $4.778 | $4.061 | $3.464 | $3.177 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 155240-2300-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 2MM 40POS VERT SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9552 pcs | Data sheet | 1552 Series DatasheetInterconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 1552 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0 00 51111 17156 1 1552402300RB 3M5099 5111117156 51111171561 7010293905 80-0011-2607-9 80001126079 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.425" (10.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Surface Mount 40 position 0.079" (2.00mm) |
| Current Rating | 1.25A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.150" (3.81mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
