155206-6203-RB

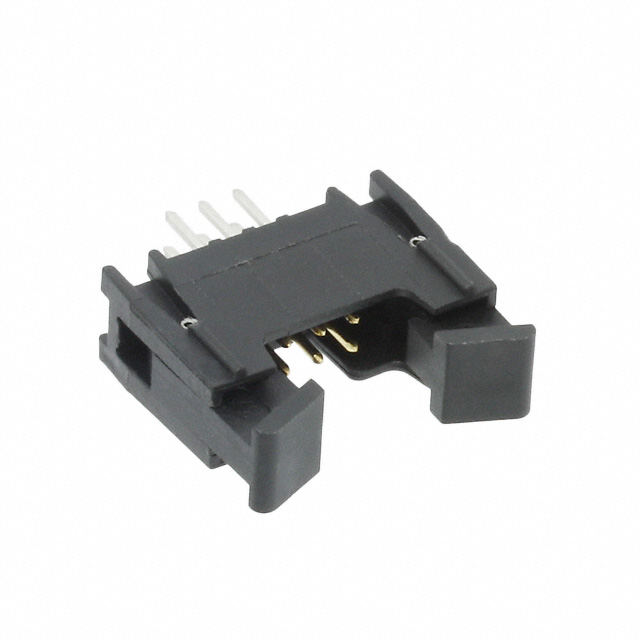

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 155206-6203-RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 155206-6203-RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 155206-6203-RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 2MM 6POS VERT .155" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1071 pcs | ||||
|---|---|---|---|---|---|
| $0.73 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 155206-6203-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 2MM 6POS VERT .155" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48022 pcs | Data sheet | 1552 Series DatasheetInterconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 1552 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0 00 51111 16903 2 80-0011-2354-8 80001123548 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.425" (10.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 6 position 0.079" (2.00mm) |
| Current Rating | 1.25A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.155" (3.94mm) | Contact Length - Mating | 0.150" (3.81mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
